Main purpose

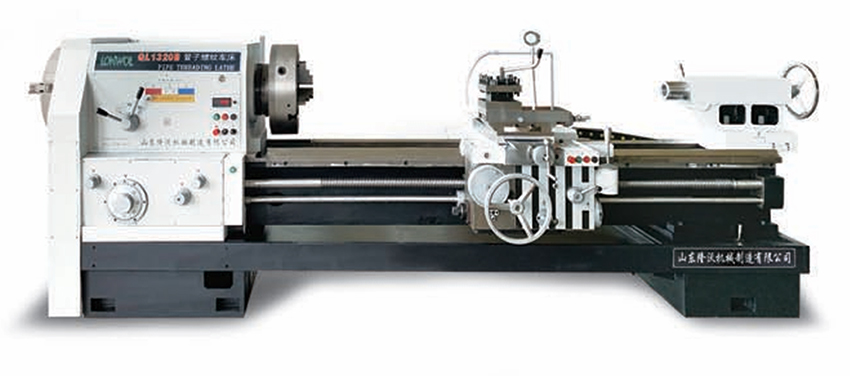

This series of pipe thread lathes is mainly used for processing internal and external pipe threads, as well as metric and imperial threads. At the same time, it can also be used as a general lathe to machine the outer circle, inner hole, and end face of shafts and discs. The machine tool is equipped with a taper device, which can process parts with taper. This machine tool is widely used in the petroleum industry for processing and repairing parts such as drill rods, joints, and casings, as well as in the chemical, coal, geological, and other industries for processing various pipelines, drill rods, and threads.
Performance characteristics:
Large spindle aperture, high passability, and stable dual chuck workpiece clamping;
High strength cast iron casting has good rigidity and high precision for the overall bed body;
The surface of the guide rail has undergone ultrasonic quenching treatment, resulting in high hardness and long service life;
Equipped with a taper bar device for easy cutting of taper threads;
Specification content:
| 主要技术参数 | SPECIFICATIONS | UNIT | QL1315 | QL1320 | QL1323 | QL1325 | QL1328 | |
| 加工范围 | 床身上最大回转直径 | Swing over bed | mm | Φ630/820 | Φ630/820 | Φ630/820 | Φ820 | Φ/820 |
| 滑板上最大回转直径 | Swing over cross slide | mm | Φ340/500 | Φ340/500 | Φ340/500 | Φ500 | Φ500 | |
| 最大工件长度 | Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| 床身宽度 | Width of bed way | mm | 550 | 550 | 550 | 600 | 600 | |
| 床身承重范围 | Max. load capacity | T | 3 | 3 | 3 | 3 | 3 | |
| 主轴 | 主轴通孔直径 | Spindle bore | mm | Φ150 | Φ205 | Φ225 | Φ225 | Φ280 |
| 主轴转速 | Spindle speed | r/min | 28-800 | 28-500 | 28-500 | 20-500 | 20-380 | |
| 主轴转速级数 | Spindle speed steps | -- | 手动3档 Manual 3steps | 手动2档 Manual 3steps | ||||
| 卡盘规格 | chuck | mm | Φ400三爪 3-jaw manual | Φ520四爪4-jaw manual | Φ630四爪4-jaw manual | Φ680四爪 4-jaw manual | ||
| 刀架 | 刀架类型 | Turret/tool post | - | 4工位手动刀架 Manual 4position | ||||
| 刀具尺寸 | Tool shank size | mm | 32 | 32 | 32 | 32 | 32 | |
| 进给 | X轴行程 | X axis travel | mm | 320/420 | 320/420 | 320/420 | 420 | 420 |
| Z轴行程 | Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | |
| X轴进给量级数/范围 | X axis feed grade/range | mm/r | 32/0.04-0.65 | 32/0.04-0.65 | 32/0.04-0.65 | 32/0.04-0.65 | 32/0.04-0.65 | |
| Z轴进给量级数/范围 | Z axis feed grade/range | mm/r | 32/0.1-1.46 | 32/0.1-1.46 | 32/0.1-1.46 | 32/0.1-1.46 | 32/0.1-1.46 | |
| X轴快移速度 | X-axis rapid traverse speed | mm/min | 2300 | 2300 | 2300 | 2300 | 2300 | |
| Z轴快移速度 | Z-axis rapid traverse speed | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | |
| 公制螺纹种数/范围 | Metric thread grade / range | mm | 32/1-15 | 32/1-15 | 32/1-15 | 32/1-15 | 32/1-15 | |
| 英制螺纹种数/范围 | Inch thread grade / range | T.P.I. | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | 26/14-1 | |
| 尾座 | 套筒行程 | Tailstock quill travel | mm | 250 | 250 | 250 | 250 | 250 |
| 套筒直径 | Tailstock quill Dia. | mm | Φ100 | Φ100 | Φ100 | Φ120 | Φ120 | |
| 套筒锥度 | Tailstock taper | mm | MT5 | MT5 | MT5 | MT6 | MT6 | |
| 电机 | 主电机 | Main motor power | kW | 11 | 11 | 11 | 15 | 15 |
外形尺寸 Dimensions | 宽度W×高度H | Width x Height | mm | 1450×1650 | 1450×1650 | 1450×1650 | 1500×1750 | 1500×1750 |
| 长度L | Length | mm | 3800/5300 | 3800/5300 | 3800/5300 | 4100/5600 | 4100/5600 | |
| 重量 | 重量 | Net weight | T | 4.0/5.2 | 4.3/5.5 | 4.5/5.7 | 4.8/ | 4.3/5.5 |
| 注意：床身回转直径、床身长度可根据客户实际需要定制。 | ||||||||
主要技术参数 | SPECIFICATIONS | UNIT | QL1328 | QL1332 | QL1336 | QL1345 | QL1353 | |
加工范围 | 床身上最大回转直径 | Swing over bed | mm | Φ1000 | Φ1000 | Φ1000 | Φ1000 | Φ1250 |
滑板上最大回转直径 | Swing over cross slide | mm | Φ610 | Φ610 | Φ610 | Φ610 | Φ850 | |
最大工件长度 | Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
床身宽度 | Width of bed way | mm | 755 | 755 | 755 | 755 | 755 | |
床身承重范围 | Max. load capacity | T | 6 | 6 | 6 | 6 | 6 | |
主轴 | 主轴通孔直径 | Spindle bore | mm | Φ280 | Φ320 | Φ360 | Φ445 | Φ530 |
主轴转速 | Spindle speed | r/min | 20-380 | 20-320 | 20-320 | 20-200 | 8-200 | |
主轴转速级数 | Spindle speed steps | - | 手动2档 Manual 2steps | |||||
卡盘规格 | chuck | mm | Φ800手动四爪4-jaw manual | Φ780电动四爪 4-jaw manual | Φ790电动四爪 4-jaw manual | Φ1000电动四爪 4-jaw manua | Φ1250电动四爪 4-jaw manua | |
刀架 | 刀架类型 | Turret/tool post | - | 4工位手动刀架 Manual 4position | ||||
刀具尺寸 | Tool shank size | mm | 45 | 45 | 45 | 45 | 45 | |
进给 | X轴行程 | X axis travel | mm | 520 | 520 | 520 | 520 | 520 |
Z轴行程 | Z axis travel | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 | |
X轴进给量级数/范围 | X axis feed grade/range | mm/r | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | |
Z轴进给量级数/范围 | Z axis feed grade/range | mm/r | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | |
X轴快移速度 | X-axis rapid traverse speed | mm/min | 1870 | 1870 | 1870 | 1870 | 1870 | |
Z轴快移速度 | Z-axis rapid traverse speed | mm/min | 3740 | 3740 | 3740 | 3740 | 3740 | |
公制螺纹种数/范围 | Metric thread grade / range | mm | 23/1-15 | 23/1-15 | 23/1-15 | 23/1-15 | 23/1-15 | |
英制螺纹种数/范围 | Inch thread grade / range | T.P.I. | 22/2-28 | 22/2-28 | 22/2-28 | 22/2-28 | 22/2-28 | |
尾座 | 套筒行程 | Tailstock quill travel | mm | 300 | 300 | 300 | 300 | 300 |
套筒直径 | Tailstock quill Dia. | mm | Φ140 | Φ140 | Φ140 | Φ140 | Φ160 | |
套筒锥度 | Tailstock taper | mm | MT6 | MT6 | MT6 | MT6 | MT6 | |
电机 | 主电机 | Main motor power | kW | 22 | 22 | 22 | 22 | 30 |
外形尺寸 Dimensions | 宽度W×高度H | Width x Height | mm | 2100×1600 | 2100×1600 | 2100×1600 | 2100×1700 | 2200×1850 |
长度L | Length | mm | 4800/6300 | 4800/6400 | 4800/6400 | 4800/6500 | 4800/6500 | |
重量 | 重量 | Net weight | T | 10.0/11.5 | 11.5/13.0 | 12.8/14.3 | 13.0/14.5 | 15.0/16.5 |
注意：床身回转直径、床身长度可根据客户实际需要定制。 | ||||||||
